2026 Jeep Wrangler Off-Road Features: Crawl Ratios, 4x4 Systems, and Trail Tech
The 2026 Jeep Wrangler delivers up to a 100:1 crawl ratio and 35 inches of water fording capability. Both figures are factory-rated on the Rubicon trim with no aftermarket modification required. Read on for a full breakdown of off-road features, then browse in-stock Wranglers at Johnsons of Kingfisher.
Feature Overview: What Makes the 2026 Wrangler the Off-Road Benchmark
The 2026 Wrangler is not a crossover with a rugged badge. It is a purpose-built 4x4 designed from the frame up for terrain that would stop any other SUV in its tracks. Every trim ships with 4WD as standard equipment. Ground clearance starts at 9.7 inches on Sport and rises to 12.9 inches on the Rubicon. The approach angle reaches 47.4 degrees and the departure angle hits 40.4 degrees on the Rubicon, numbers that define how steep a climb or descent the Wrangler can take without scraping sheet metal.
The 2026 lineup spans seven trims: Sport, Sport S, Willys, Sahara (four-door only), Rubicon, Rubicon X, and Moab 392 (four-door only). That range covers entry-level trail capability through a 470-horsepower V-8 off-road machine.
Four separate 4x4 transfer case systems are offered across the lineup: Command-Trac, Rock-Trac (part-time), Rock-Trac (full-time), and Selec-Trac. Each one is engineered for a different style of use, from weekend trail riding to serious technical rock crawling. The Rubicon adds an electronically controlled front sway-bar disconnect, which frees up suspension articulation on uneven surfaces in a way a fixed sway bar physically cannot allow.
For 2026, Jeep redesigned the door hinge system so doors remove faster and more cleanly than on any prior Wrangler. Open-air off-roading is now easier to access on a trail stop, with no tools required and no fighting a stiff mechanism.
2026 Jeep Wrangler full specs and trims
How It Works: The Four 4x4 Systems Explained
Command-Trac, Sport, Sport S, Sahara, Willys
A part-time transfer case with a 2.72:1 low-range ratio. Operates in 2WD High, 4WD High, Neutral, and 4WD Low. Shift-on-the-fly capability means you can engage 4WD at road speed without stopping. This is the right system for Oklahoma back roads, gravel, mud, and light rock work.
Rock-Trac NV241OR, Rubicon, Part-Time
Doubles the low-range ratio to 4.0:1, which is where the 100:1 crawl ratio originates when combined with the available 4.88 axle ratio and 8-speed automatic. Part-time mode means the front and rear axles are mechanically locked together in 4WD, maximizing traction on loose surfaces.
Rock-Trac MP3022OR, Rubicon, Full-Time
The same 4.0:1 low-range ratio in a full-time transfer case. This adds a 4WD Auto mode, which splits torque front and rear continuously without driver input. Useful when conditions alternate between pavement and dirt.
Selec-Trac, Moab 392
A full-time transfer case with a 2.72:1 low range. Standard on the V-8 trim, which pairs it with the 6.4-liter V-8 producing 470 horsepower and 470 lb-ft of torque. The Moab 392 also uses a 4.56 axle ratio and 35-inch LT315/70R17C tires from the factory.
The Rubicon's Tru-Lok electronic locking differentials, front and rear, are activated by a dash switch. On a slick surface or a ledge, locking both axles forces each wheel to spin at the same rate regardless of traction. That eliminates the problem of a spinning wheel on the easy side while the wheel that needs grip sits still.
Jeep Wrangler capability specs
Across the Trims: Off-Road Equipment by Model

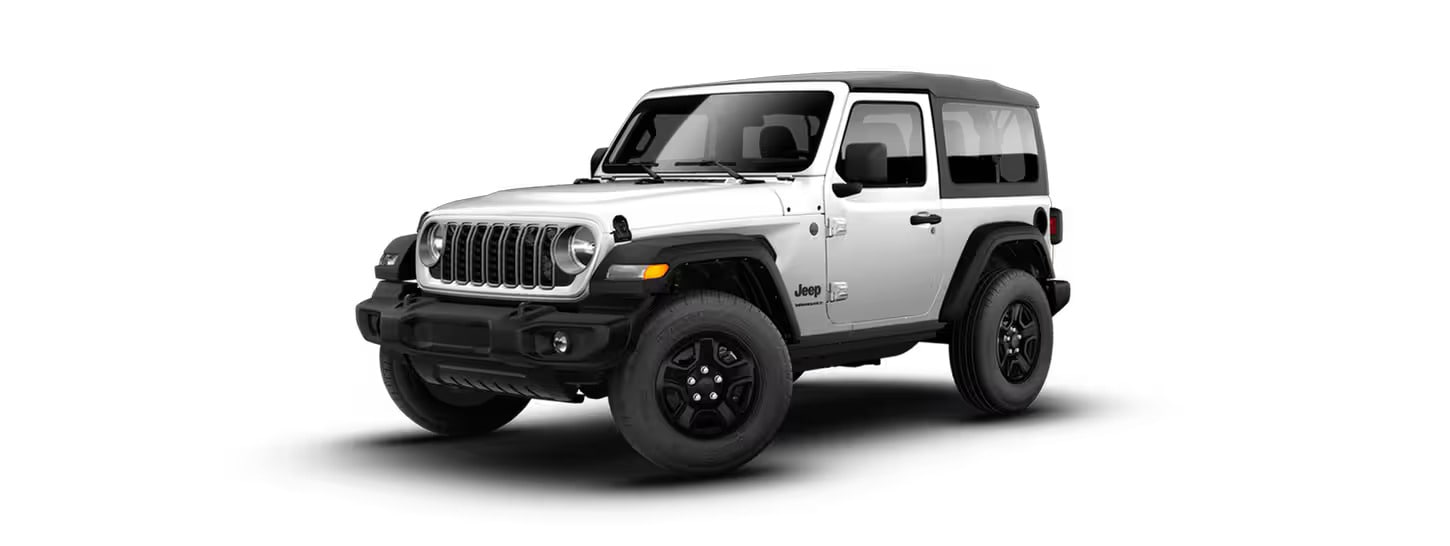

Sport and Sport S
Command-Trac transfer case, 3.45 axle ratio standard, Dana solid-front and solid-rear axles, skid plates on fuel tank and transfer case, 9.7 inches of ground clearance on standard tires, 30 inches of water fording. The Sport S adds the available Xtreme 35 Package, which upgrades to 35-inch LT315/70R17C tires, 17-inch beadlock-capable wheels, a 4.56 axle ratio, a 1.5-inch factory suspension lift, and swing-gate reinforcement.
Willys, 2-Door
The Willys steps up from the Sport S with LT285/70R17C BSW off-road tires standard, a Tru-Lok rear locker, Dana 44 heavy-duty front and rear axles, a 4.10 rear axle ratio, rock-protection sill rails, and a Mold-In-Color fender flare. For 2026, available equipment includes steel bumpers and a front Warn winch. The Willys also includes an Off-Road Plus mode and auxiliary switches as standard, making it the most capable non-Rubicon 2-door in the lineup.

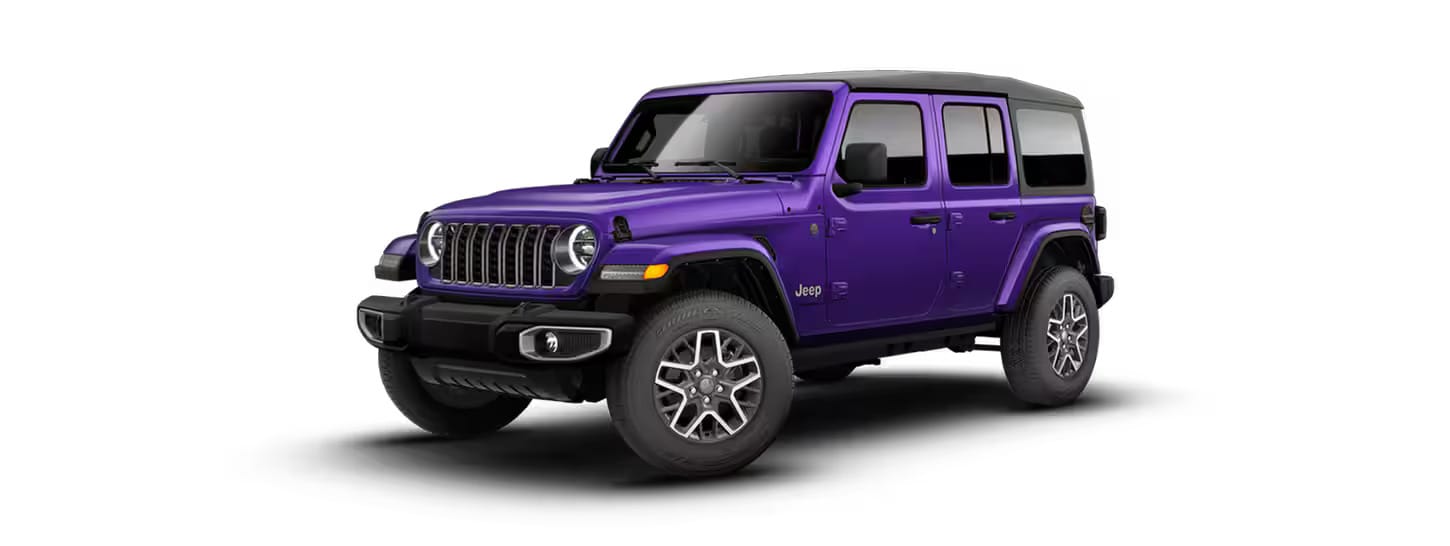

Sahara, 4-Door
Command-Trac transfer case, 2.0L turbocharged four-cylinder standard, 18-inch machined/painted gray wheels on 255/70R18 all-season tires, body-color fender flares, heated front seats standard, and Uconnect 5 with 12.3-inch touchscreen standard. The Sahara is the comfort-oriented 4-door that still offers solid off-road capability via Command-Trac and available all-terrain tires.

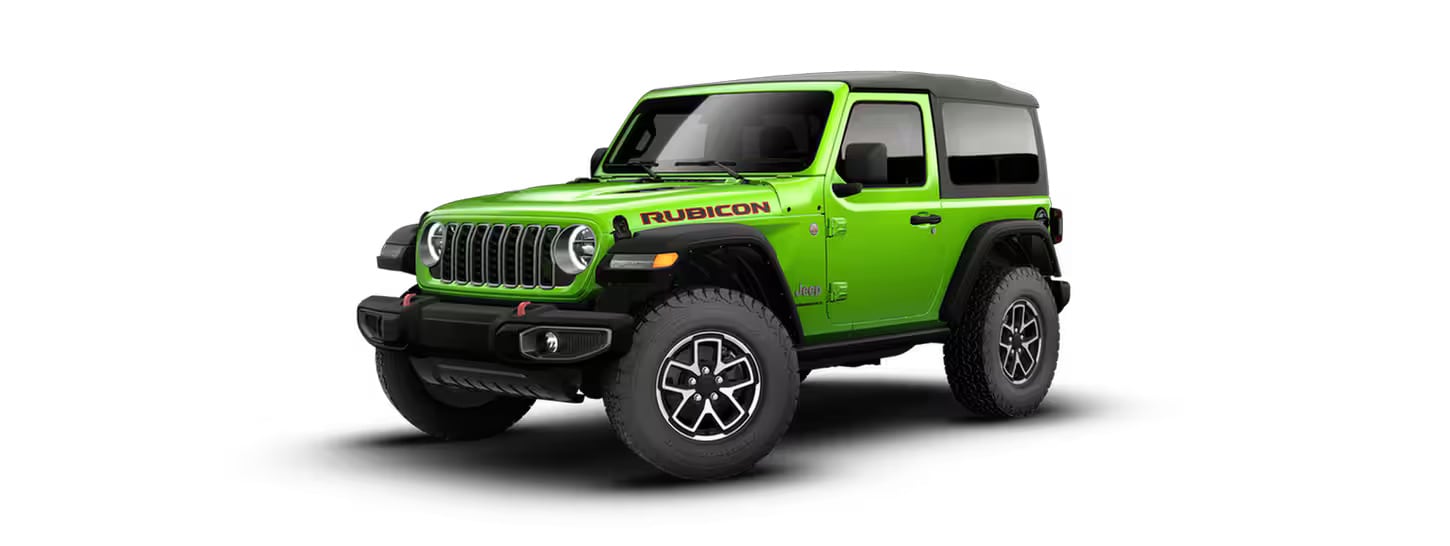

Rubicon, 2-Door
The Rubicon is where the off-road specification makes a serious jump. Standard content includes Rock-Trac with 4.0:1 low range, Tru-Lok electronic locking front and rear differentials, front sway-bar disconnect, Dana 44 heavy-duty axles front and rear with a full-floating rear, 35-inch LT285/70R17C off-road tires, beadlock-capable machined/painted black wheels, rock-protection sill rails, and a 4.10 standard axle ratio. Ground clearance on the Rubicon with the Xtreme 35 Package reaches 12.9 inches. Water fording extends to 34 inches. Crawl ratio can reach 100:1 with the available 4.88 axle ratio and 8-speed automatic.

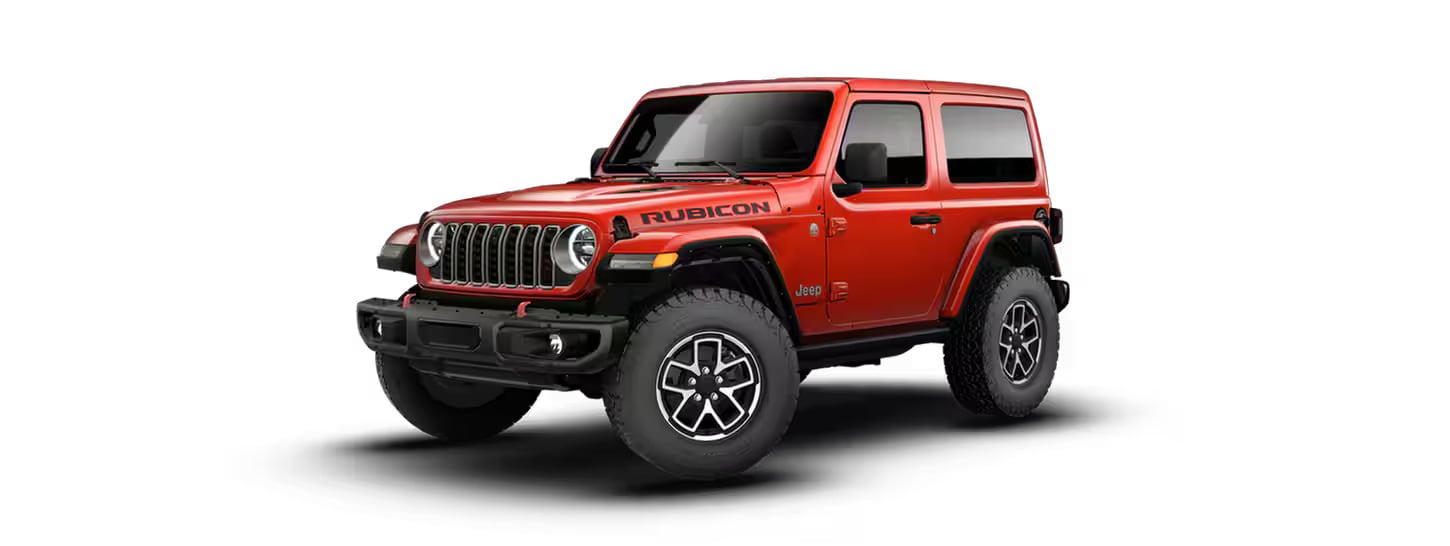

Rubicon X, 2-Door
The Rubicon X bundles Nappa leather seats standard, an 8-way power-adjustable driver seat, a body-color hardtop standard, Uconnect 5 Nav with 12.3-inch touchscreen, GPS navigation, an automatic-dimming rear-view mirror, and Blind-Spot and Cross-Path Detection alongside the full Rubicon off-road platform. It is the Rubicon's maximum-content 2-door configuration without moving to a V-8 trim.

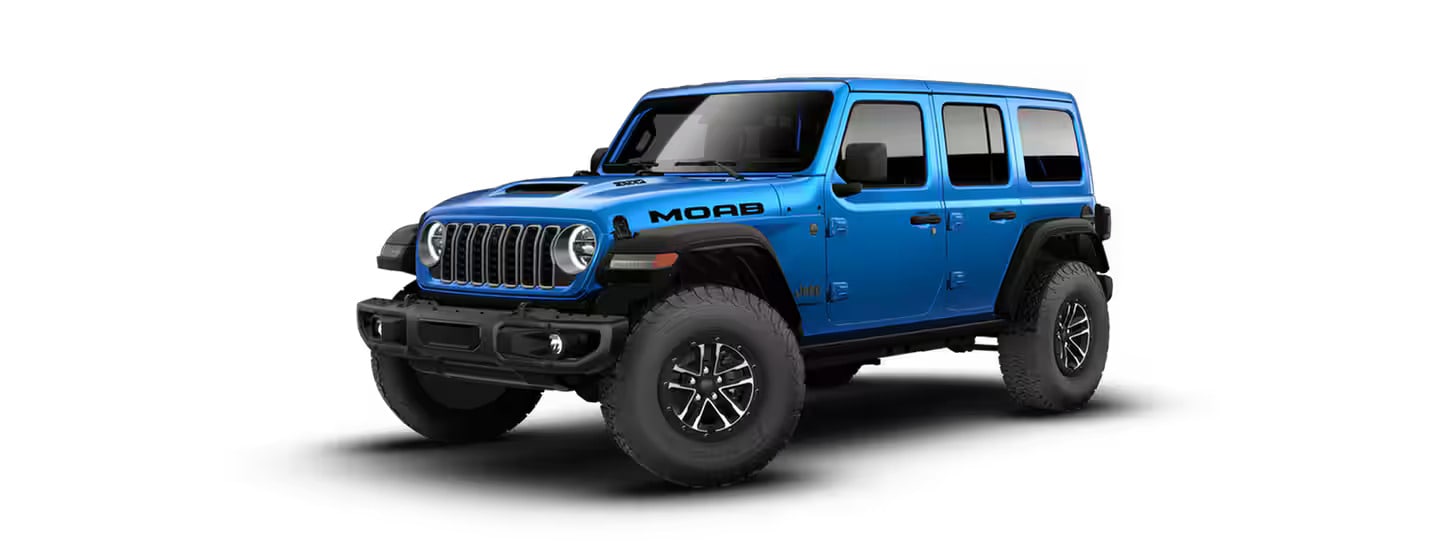

Moab 392, 4-Door
The Moab 392 is powered by the 6.4-liter V-8 producing 470 horsepower and 470 lb-ft of torque, paired to an 8-speed automatic 8HP75 transmission. It uses the Selec-Trac full-time transfer case, Tru-Lok front and rear lockers, a 4.56 rear axle ratio, 35-inch LT315/70R17C tires standard, a 21.5-gallon fuel tank, and 17-inch Low Gloss Smoked Bronze beadlock-capable wheels. It adds a body-color 3-piece hardtop standard, Nappa leather seats, 8-way power-adjustable front seats for both driver and passenger, an active noise-control system, steering-wheel-mounted shift paddles, ParkSense rear park-assist, Blind-Spot and Cross-Path Detection standard, and a remote start system. The Moab 392 also includes a cold-air intake hood with a water separator for engine protection during deep water crossings.
Real-World Benefit: What These Features Mean on Actual Terrain
For buyers in and around Kingfisher who use the Wrangler as a daily driver and a weekend trail vehicle, these specs translate into tangible outcomes:
100:1 Crawl Ratio
A crawl ratio up to 100:1 means the engine can idle and the Wrangler will still crawl forward at roughly one foot per second on a steep grade, with no throttle input needed. That removes driver error from the equation on technical climbs.
Water Fording
The 35 inches of water fording on the Rubicon with 35-inch tires means river crossings that would submerge a typical truck's air intake become manageable. The Moab 392 adds an intake hood with a water separator for extra margin.
Quick-Release Door Hinges
The quick-release door hinges, new for 2026, mean doors come off at a trailhead in minutes. Combined with the fold-down windshield option and the Sunrider soft-top, the Wrangler can become a fully open vehicle before you reach the first obstacle.
Trails Offroad Integration
The Trails Offroad integration, available through Apple CarPlay and Android Auto on the 12.3-inch Uconnect touchscreen, delivers trail guides and maps directly to the screen. Drivers can follow a route without printing anything or downloading a separate app.
Forward-Facing Off-Road Camera
The available forward-facing off-road camera, included on Rubicon X and Moab 392 as standard and available on other trims, projects a live view of the terrain directly ahead of the front bumper onto the Uconnect screen. That camera eliminates the guesswork on approach when a nose-down descent hides the landing zone.
2026 Wrangler tech and Uconnect features
Get Behind the Wheel at Johnsons of Kingfisher
The 2026 Wrangler's off-road spec is real, not marketing. A 100:1 crawl ratio, 35 inches of water fording, four 4x4 systems, and the new quick-release door hinges make this the most configurable factory trail vehicle available in the United States. Johnsons of Kingfisher carries Wrangler inventory across the trim lineup, from the value-focused Sport to the V-8-powered Moab 392. Stop in, take one off-road, and let the terrain make the case.
Frequently Asked Questions
What crawl ratio does the 2026 Jeep Wrangler achieve?
Up to 100:1, achieved on the Rubicon trim with the Rock-Trac 4.0:1 transfer case, an available 4.88 axle ratio, and the 8-speed automatic transmission. That is the best-in-class figure for this segment.
How deep can the 2026 Wrangler wade through water?
Up to 35 inches on the Rubicon equipped with 35-inch LT315/70R17C tires. Sport and Sport S with standard tires are rated to 30 inches. The Moab 392 includes an intake hood with a water separator to protect the engine during deep fording.
What 4x4 systems does the 2026 Wrangler offer?
Four systems: Command-Trac (part-time, 2.72:1 low range, standard on Sport, Sport S, Sahara, and Willys), Rock-Trac part-time (4.0:1, standard on Rubicon), Rock-Trac full-time (4.0:1, optional on Rubicon), and Selec-Trac full-time (2.72:1, standard on Moab 392). All Wrangler trims include 4WD as standard equipment.
Does the 2026 Wrangler Rubicon have locking differentials?
Yes. The Rubicon includes Tru-Lok electronic locking differentials at both the front and rear axle, activated by a dash-mounted switch. The Rubicon X and Moab 392 also include Tru-Lok front and rear lockers as standard. The Willys 2-door includes a Tru-Lok rear locker standard.
What is new for the 2026 Wrangler in terms of off-road features?
The most notable mechanical addition is a redesigned door hinge system that makes door removal faster and easier than on any prior Wrangler. The Moab 392 is a V-8 trim featuring the 6.4-liter HEMI with 470 horsepower, 35-inch tires, beadlock-capable wheels, and an intake hood with a water separator. The Willys 2-door gains available steel bumpers and a front Warn winch for 2026.
What ground clearance does the 2026 Wrangler offer?
It varies by trim and tire. The Sport on standard tires has 9.7 inches. The Rubicon on 35-inch tires via the Xtreme 35 Package achieves 12.9 inches on the 4-door. The Moab 392 sits at 11.1 inches on its standard 35-inch tires.
Can I see the terrain ahead of the bumper while off-roading?
Yes. An available forward-facing off-road camera is standard on the Rubicon X and Moab 392 and available on other trims via the Technology Group or as a standalone option. It projects a live video feed onto the 12.3-inch Uconnect touchscreen, helping drivers navigate drop-offs and rock faces with precision.
Does the 2026 Wrangler include trail navigation?
Yes. The Wrangler integrates with the Trails Offroad platform through Apple CarPlay and Android Auto on the standard 12.3-inch Uconnect touchscreen. That app delivers off-road trail guides and maps without requiring a separate device.
